• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger. Includes rear air conditioning outlets in center console when bucket seats are ordered
• Assist handles, front passenger and rear outboard
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage.)
• Cruise control, electronic with set and resume speed
• Defogger, rear-window electric
• Door locks, power programmable with lockout protection
• Floor covering, color-keyed carpeting with (B58) carpeted floor mats
• Headliner, cloth
• Lighting, interior with dome lamp, driver-and passenger-side door switch with delayed entry feature, cargo light, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• LTZ Plus Sales Package
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• OnStar Equipped (subscription required)
• Remote vehicle starter system includes Remote Keyless Entry
• Seats, rear 60/40 split-bench, 3-passenger, flip and fold with child seat top tether anchor
• Steering wheel controls, mounted audio and cruise controls
• Steering wheel, leather-wrapped
• Theft-deterrent system, PASS-Key III
• Tire Pressure Monitoring System (does not apply to spare tire)
• Universal Home Remote includes garage door opener, programmable
• Windows, power with driver and front passenger Express-Down and lockout features
• XM Satellite Radio (subscription required)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Differential, heavy-duty locking rear
• Four wheel drive
• GVWR, 7200 lbs. (3266 kg) (Requires CK10936 models)
• Key, single, 2-sided
• Rear axle, 3.73 ratio
• StabiliTrak, stability control system with Proactive Roll Avoidance
• Steering, power
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Tire, spare P265/70R17

• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE 6-DISC IN-DASH CD CHANGER

• auxiliary input jack
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND TOW/HAUL MODE

• (STD)

LTZ PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT

• capable of running on unleaded or up to 85% ethanol (310 hp [231.1 kW] @ 5200 rpm
• 335 lb-ft of torque [452.3 N-m] @ 4400 rpm)
• aluminum block (STD)

REAR AXLE, 3.73 RATIO

• (STD)

SUSPENSION PACKAGE, AUTORIDE, BI-STATE VARIABLE SHOCK DAMPENING AND REAR AIR-ASSISTED LOAD-LEVELING

• includes (G69) Level control
• auto air

SEATS, FRONT BUCKET WITH LEATHER-APPOINTED SEATING

• (AG1) 10-way power driver and (AG2) front passenger seat adjusters
• power lumbar control
• heated seat cushion and seatbacks
• 2-position driver memory
• adjustable head restraints
• storage pockets and floor console (STD)

• 3.73 Rear Axle Ratio
• AM/FM Stereo w/MP3/6-Disc CD/XM Satellite
• Engine Block Heater
• XM Satellite Radio
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Safe & Sound
• AM/FM radio: XM
• Compass
• Auto-dimming Rear-View mirror
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window defroster
• Rear step bumper
• Rear seat center armrest
• Rear reading lights
• Rear anti-roll bar
• Radio data system
• Power windows
• Power steering
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Leather steering wheel
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Bodyside moldings
• Alloy wheels
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x .78
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 22.5
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 45.5
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Exterior Dimensions
• Ground to Top of Load Floor (in): 31.0
• Height, Overall (in): 76.6
• Length, Overall w/o rear bumper (in): 221.3
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.9
• Wheelbase (in): 130.0
• Width, Max w/o mirrors (in): 79.1
• Frame
• Frame Type: Body on
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Inboard LH Frame Rail
• Interior Dimensions
• Front Head Room (in): 41.1
• Front Hip Room (in): 64.4
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Passenger Capacity: 5
• Second Head Room (in): 40.0
• Second Hip Room (in): 62.3
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.2
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Steering
• Steering Ratio (:1), At Lock: 3.0
• Steering Ratio (:1), On Center: 17.75
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 43.0
• Summary
• Body Style: 4 Door Crew Cab

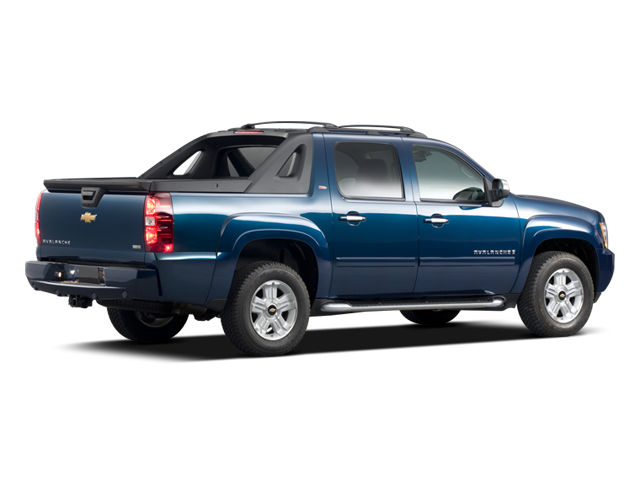

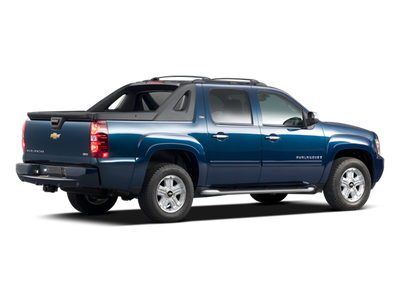

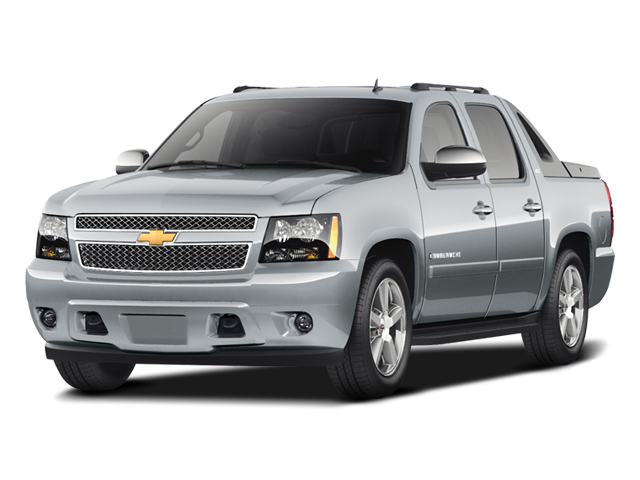

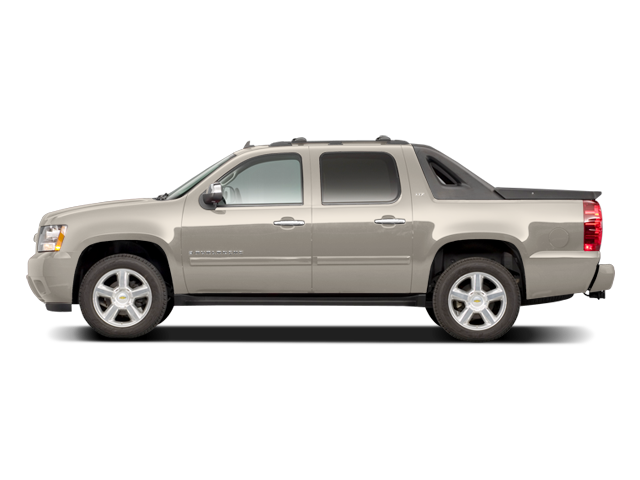

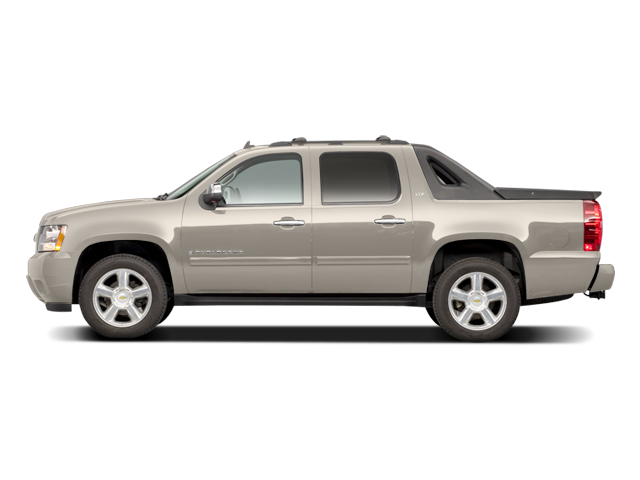

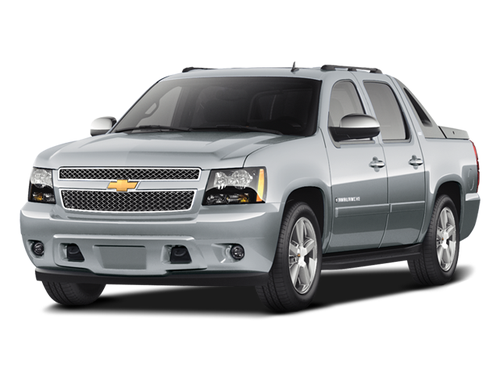

• Vehicle Name: Chevrolet Avalanche
• Suspension
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 4000
• Stabilizer Bar Diameter - Front (in): 1.12
• Stabilizer Bar Diameter - Rear (in): 1.12
• Suspension Type - Front: Coil Over Shock
• Suspension Type - Rear: Rear Air Assisted
• Tires
• Front Tire Order Code: QSS
• Front Tire Size: P275/55R20
• Rear Tire Order Code: QSS
• Rear Tire Size: P275/55R20
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZRS
• Spare Tire Size: P265/70R17
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1050
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Weight Information
• Curb Weight - Front (lbs): 2910
• Curb Weight - Rear (lbs): 2694
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17
